Plug in type LC APC Single Mode male to female Fiber Optic Attenuator with 2dB 5dB 10dB 15dB
- China
- 5-7 workdays

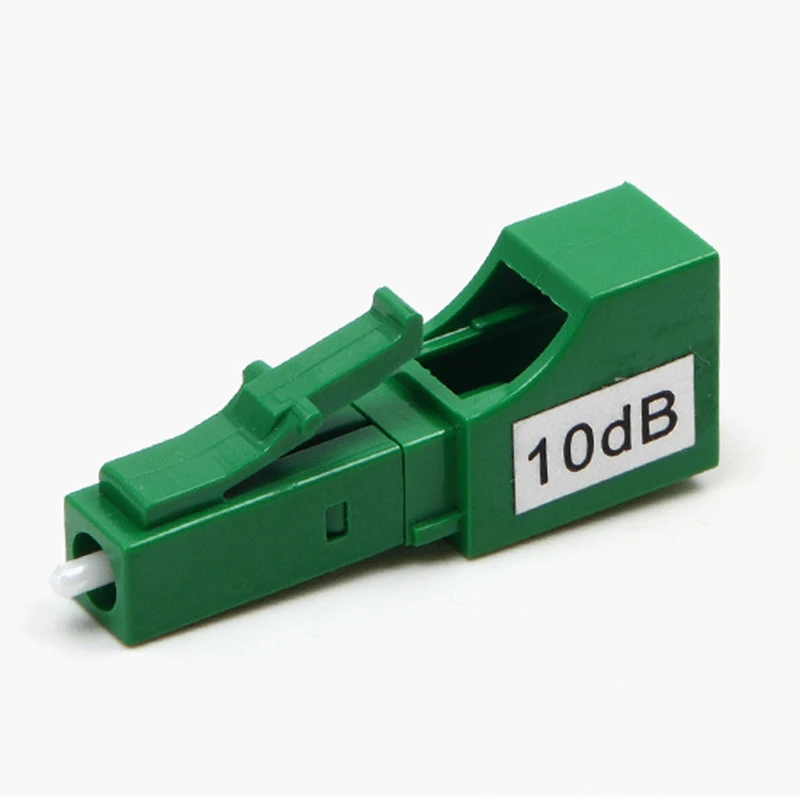

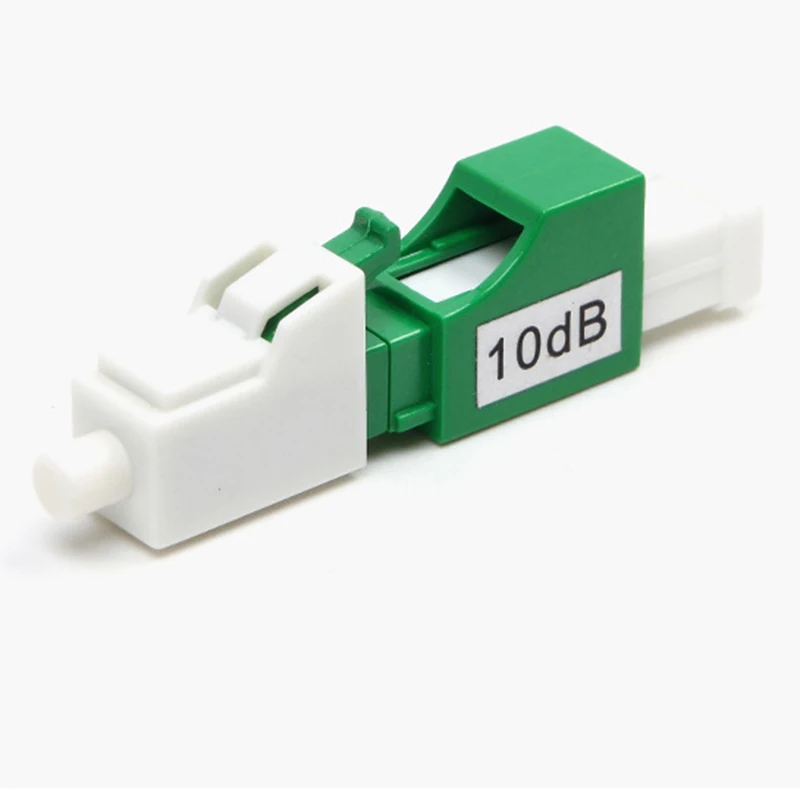

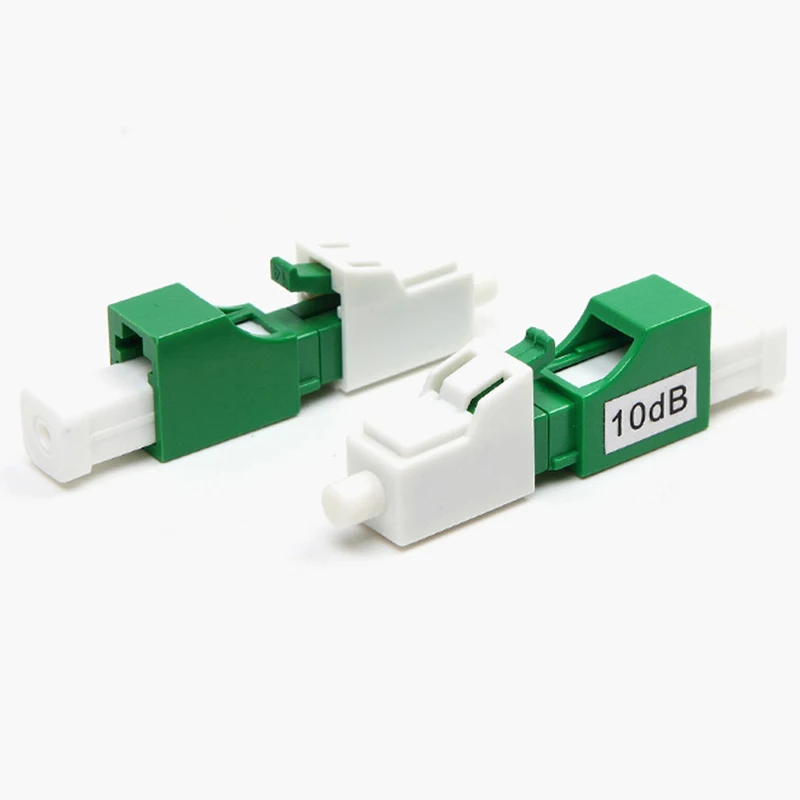

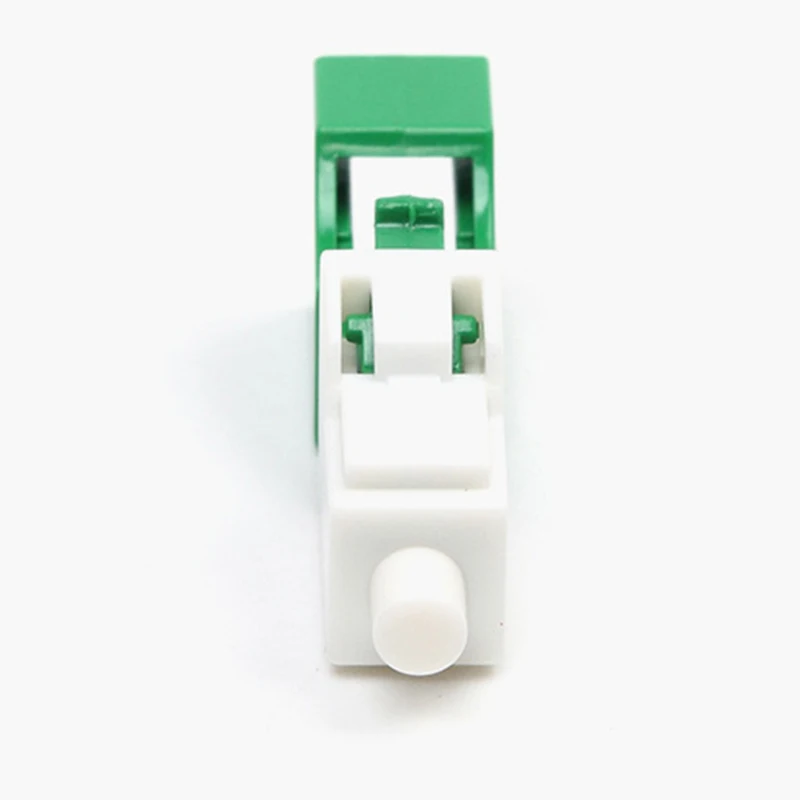

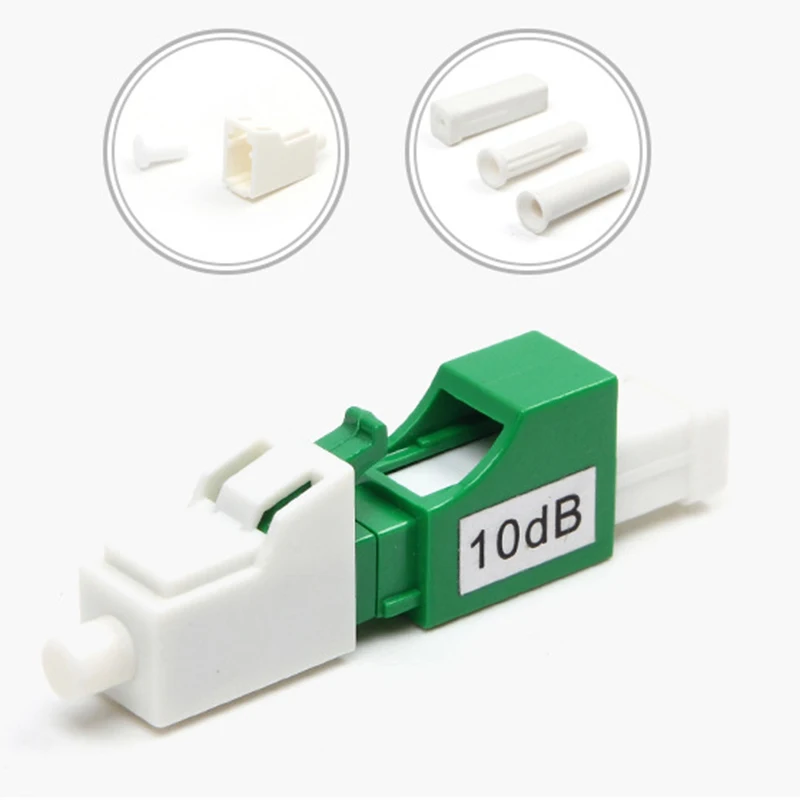

Plug in type LC APC Single Mode male to female Fiber Optic Attenuator with 2dB 5dB 10dB 15dB
Description:
Fiber Optic Attenuator is a component installed in a fiber optic transmission system that reduces the power in the optical signal. It is often used to limit the optical power received by the photo detector to within the limits of the optical receiver.
Product Name
|
LC APC Male to Female Type Optical Attenuator
|
Operating Wavelength
|
1260~1620nm
|
Return Loss
|
≥ 60 dB
|
Maximum optical Input power
|
200mW
|
Insertion times
|
>1000
|
Attenuation Tolerance
|
≤ 0.2db
|
Working Temperature
|
-40°C~+ 75°C
|
Feature:
1.High return
2.Simple structure
3.Excellect stability
4.High precision size
5.Broad wavelength band
2.Simple structure
3.Excellect stability
4.High precision size
5.Broad wavelength band
Application:
1.CATV
2.EPON/GPON
3.Testing equipment
4.High power element
5.Teecommunication system
