FTTH Fiber Optic SC/APC Fast Connector Quick Connector SC/APC

  • China
  • 5-7 workdays


FTTH Fiber Optic SC/APC Fast Connector Quick Connector SC/APC

Description :

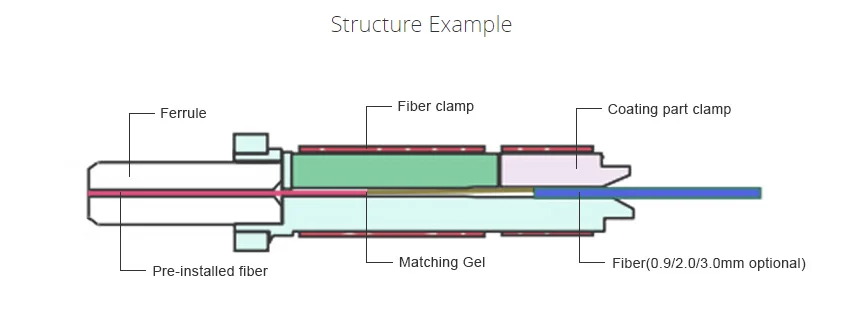

The Fast Connector (Field Assembly Connector or Field terminated fiber connector, quickly assembly Fiber connector) is a revolutionary field installable optical fiber connector that requires no epoxy and no polishing, this connector during the installation process does not require any adhesive and curing process. The unique design of the patented mechanical splice body incorporates a factory-mounted fiber stub and a pre-polished ceramic ferrule, They are widely used in FTTx, Connecting up Renovation of Computer/controlling Room applications.


The Field Assembly SC/PC SC/APC SC/UPC Fast Connector for FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.
Pls Note: Choose type in accordance with connecting head of optical movable connector. According to the structural form of connecting head. It can be divided into FC,FC,ST,LC,MTRJ,MPO,MU,SMA,DDI,DIN4,D4,E2000 various types. The excelent strength and stability(200-600gt insertion and extraction force)can be got by good sintered technology.

1. Good compatibility and directivity.
2. can meet your requirements about high dimensional accuracy, good abrasion resistance,and good temperature characteristic.
3..100% of the factory testing guarantee the reliability of the product use.
4. Precisely external size make it easier to install, flexible and convenient use.

1. Telecommunication Networks
2. Local Area Networks(LANs)
3. Data Processing Networks
4. Active Device Termination
5. Premise Installations

6. Wide Area Networks(WANs),etc


Available connector type
Boot type
0.9mm/2.0mm/3.0mm fiber cable
Fiber Type
Singlemode, Multimode
Insertion loss (db)
 <= 0.3 db (typical)
Return loss(db)
 >= 50db
Polishing type
Reusable Times
>10 times
Connection Method
Push – on
Storage/Operating Temperature
-40°C to + 85°C
Detailed Image
Related Products
Installation Method
