40G QSFP+ to 4xSFP+ Breakout Active Optical Cable (AOC)

40G QSFP+ to 4xSFP+ Breakout Active Optical Cable (AOC)

40G QSFP+ to 4 x 10G SFP+ AOC 850nm OM3 Cable

40G QSFP+ to 4x10G SFP+ AOC Multimode Breakout Active Optical Cable

OM3/OM4 MMF For Ethernet and Data Center 850nm



QSFP+ AOC end:

  • Compliant to the 40GBASE-SR4 and XLPPI

Specification per IEEE 802.3ba-2010 and supporting

40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications

  • Compliant to the industry standard SFF-8436

QSFP+ Specification

  • Power Level 1: Max Power < 1.5 W
  • Operate at 10.3125 Gbps per channel with 64b/66b

encoded data for 40GbE application and at 10 Gbps

with 8b/10b compatible encoded data for 40G-IB-QDR application

Each 4× SFP+ end:

  • Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
  • Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF”
  • Maximum power dissipation 0.35W per end.

Active Optical Cable Assembly:

  • 0 to 70C degree case temperature operating range
  • Proven High Reliability 850 nm technology
  • Hot pluggable for ease of servicing and installation
  • Two Wire Serialinterface
  • Utilizes optical fiber for high density and thin, lightweight cable management

Applications

  • 40GbE and 10GbE break-out applications for Datacom switch and router connections
  • 40G to 4×10G density applications for Datacom and Proprietary protocol applications
  • Datacenter

Description

The LX-4SFPAOC-XXXC is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4× SFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 40G to 4× 10G applications.

This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40 Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G InfiniBand QDR applications and are backwards compatible to the 4 × 5G IB DDR and 4 × 2.5G IB single IB SDR applications.

This product is leveraged from LANMexx QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. Where applicable, consult these respective datasheets

This AOC incorporates LANMexx’ proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.



Compatiable brand

QSFP+ to 8 x LC Connector Breakout Optical Cable For  Data Center

Order  information

40G QSFP+AOC



Part No. Form Factor Data Rate Distance Wavelength Connector
QSFP-40G-AOC3M QSFP+ 40G/ps 3M N/A QSFP+/QSFP+
QSFP-40G-AOC5M QSFP+ 40G/ps 5M N/A QSFP+/QSFP+
QSFP-40G-AOC7M QSFP+ 40G/ps 7M N/A QSFP+/QSFP+
QSFP-40G-AOC10M QSFP+ 40G/ps 10M N/A QSFP+/QSFP+
QSFP-40G-AOC15M QSFP+ 40G/ps 15M N/A QSFP+/QSFP+
QSFP-40G-AOC20M QSFP+ 40G/ps 20M N/A QSFP+/QSFP+
QSFP-40G-AOC50M QSFP+ 40G/ps 50M N/A QSFP+/QSFP+
QSFP-40G-AOC100M QSFP+ 40G/ps 100M N/A QSFP+/QSFP+
QSFP-40G/4SFP-AOC3M QSFP+ 40G/ps 3M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC5M QSFP+ 40G/ps 5M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC6M QSFP+ 40G/ps 6M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC7M QSFP+ 40G/ps 7M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC8M QSFP+ 40G/ps 8M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC10M QSFP+ 40G/ps 10M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC15M QSFP+ 40G/ps 15M OM1/OM3 QSFP/4SFP
QSFP-40G/8LC-AOC5M QSFP+ 40G/ps 5M OM3 QSFP+/8LC
QSFP-40G/8LC-AOC10M QSFP+ 40G/ps 10M OM3 QSFP+/8LC
QSFP-40G/8LC-AOC15M QSFP+ 40G/ps 15M OM3 QSFP+/8LC
QSFP-40G/8LC-AOC20M QSFP+ 40G/ps 20M OM3 QSFP+/8LC





LANMexx  also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Please feel free to contact  sales@szlanmexx.com





Active Optical Cable AOC Cable 40G QSFP+ to QSFP+ SR4 850nm

Active Optical Cable AOC Cable 40G QSFP+ to QSFP+ SR4 850nm

40G AOC 2m Active Cable QSFP+ 850nm l 40G QSFP+ to QSFP AOC Cable

 Compatible Juniper 40g Qsfp+ Aoc 850nm 1-100m Active Optical Cables

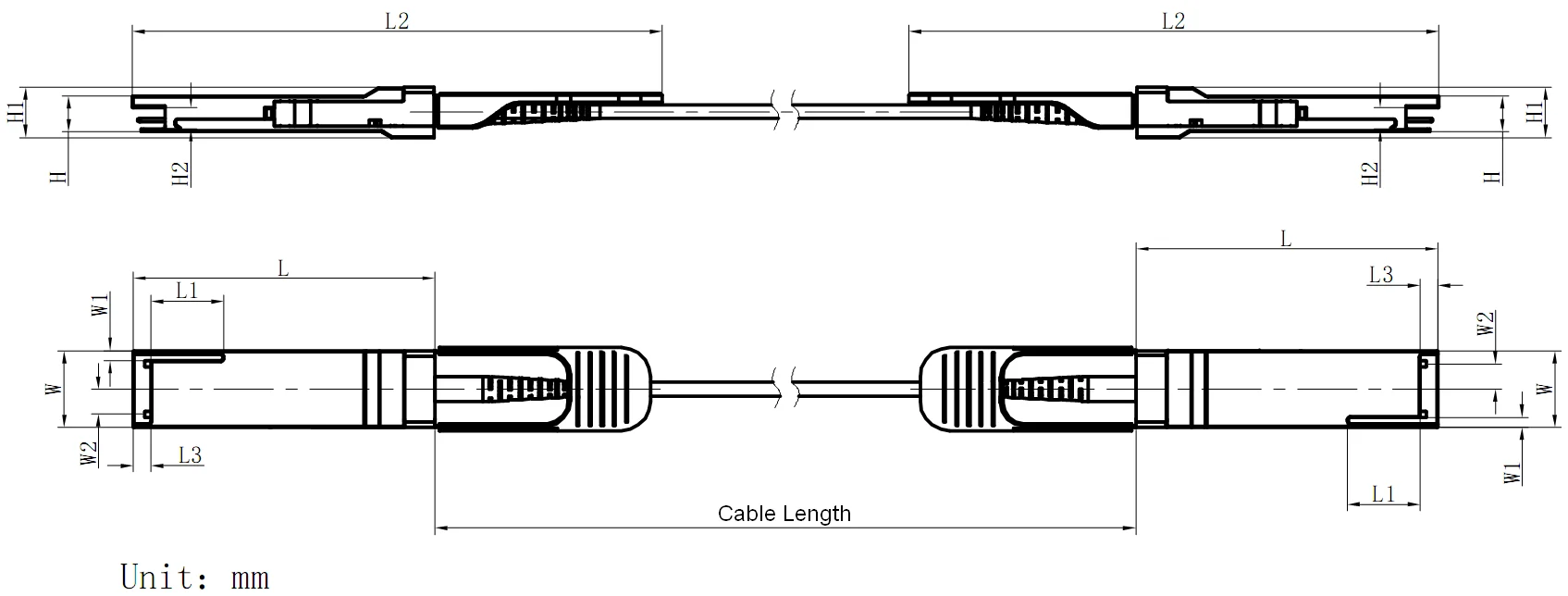

                                                                                                                    40G QSFP+ Active Optical Cable (AOC, 1~100m, 850nm, OM3)

Features
* 4 channels 850nm VCSELand PIN
* Electrical interface compliant to SFF-8436
* Support 40GE data rate
* Hot Pluggable QSFP form factor
* Built-in digital diagnostic functions
* Operating case temperature 0°C to +70°C
* 3V power supply voltage
* Round OFNP-rated cable
UL certification cables (optional)

* Compliant with SFF-8472 Rev 10.2
* RoHS Compliant

 40G QSFP+ Active Optical Cable (AOC, 1~100m, 850nm, OM3)



Compatiable brand

QSFP+ to 8 x LC Connector Breakout Optical Cable For  Data Center

Order  information

40G QSFP+AOC



Part No. Form Factor Data Rate Distance Wavelength Connector
QSFP-40G-AOC3M QSFP+ 40G/ps 3M N/A QSFP+/QSFP+
QSFP-40G-AOC5M QSFP+ 40G/ps 5M N/A QSFP+/QSFP+
QSFP-40G-AOC7M QSFP+ 40G/ps 7M N/A QSFP+/QSFP+
QSFP-40G-AOC10M QSFP+ 40G/ps 10M N/A QSFP+/QSFP+
QSFP-40G-AOC15M QSFP+ 40G/ps 15M N/A QSFP+/QSFP+
QSFP-40G-AOC20M QSFP+ 40G/ps 20M N/A QSFP+/QSFP+
QSFP-40G-AOC50M QSFP+ 40G/ps 50M N/A QSFP+/QSFP+
QSFP-40G-AOC100M QSFP+ 40G/ps 100M N/A QSFP+/QSFP+

QSFP-40G/4SFP-AOC3M QSFP+ 40G/ps 3M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC5M QSFP+ 40G/ps 5M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC6M QSFP+ 40G/ps 6M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC7M QSFP+ 40G/ps 7M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC8M QSFP+ 40G/ps 8M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC10M QSFP+ 40G/ps 10M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC15M QSFP+ 40G/ps 15M OM1/OM3 QSFP/4SFP

QSFP-40G/8LC-AOC5M QSFP+ 40G/ps 5M OM3 QSFP+/8LC
QSFP-40G/8LC-AOC10M QSFP+ 40G/ps 10M OM3 QSFP+/8LC
QSFP-40G/8LC-AOC15M QSFP+ 40G/ps 15M OM3 QSFP+/8LC
QSFP-40G/8LC-AOC20M QSFP+ 40G/ps 20M OM3 QSFP+/8LC





LANMexx  also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Please feel free to contact  sales@szlanmexx.com





40G QSFP+ to 4X 10G SFP+ breakout Active Optical Cables

40G QSFP+ to 4X 10G SFP+ breakout Active Optical Cables

40G QSFP+ to 4x 10G SFP+ Breakout Active Optical Cables

40G QSFP+ to 4 x 10G SFP+ AOC 850nm OM3 Cable

                                                                                                             Quality Supplier for 40G QSFP to 10G SFP Breakout Active Optical Cable

Features

Features
* Electrical interface compliant to QSFP+ connector
(SFF-8436) and SFP+ connectors (SFF-8431)
* Hot Pluggable
* 850nm VCSEL transmitter, PIN photo-detector receiver
* Operating case temperature: 0 to 70℃
* 3V power supply voltage
* All-metal housing for superior EMI performance

Applications
* 40 Gigabit Ethernet
* Fibre Channel Applications
* InfiniBand QDR, SDR, DDR
* Servers, switches, storage and host card adapters
* High-performance computing clusters





Compatiable brand

QSFP+ to 8 x LC Connector Breakout Optical Cable For  Data Center

Order  information

40G QSFP+AOC



Part No. Form Factor Data Rate Distance Wavelength Connector
QSFP-40G-AOC3M QSFP+ 40G/ps 3M N/A QSFP+/QSFP+
QSFP-40G-AOC5M QSFP+ 40G/ps 5M N/A QSFP+/QSFP+
QSFP-40G-AOC7M QSFP+ 40G/ps 7M N/A QSFP+/QSFP+
QSFP-40G-AOC10M QSFP+ 40G/ps 10M N/A QSFP+/QSFP+
QSFP-40G-AOC15M QSFP+ 40G/ps 15M N/A QSFP+/QSFP+
QSFP-40G-AOC20M QSFP+ 40G/ps 20M N/A QSFP+/QSFP+
QSFP-40G-AOC50M QSFP+ 40G/ps 50M N/A QSFP+/QSFP+
QSFP-40G-AOC100M QSFP+ 40G/ps 100M N/A QSFP+/QSFP+
QSFP-40G/4SFP-AOC3M QSFP+ 40G/ps 3M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC5M QSFP+ 40G/ps 5M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC6M QSFP+ 40G/ps 6M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC7M QSFP+ 40G/ps 7M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC8M QSFP+ 40G/ps 8M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC10M QSFP+ 40G/ps 10M

OM1

OM3

QSFP/4SFP
QSFP-40G/4SFP-AOC15M QSFP+ 40G/ps 15M OM1/OM3 QSFP/4SFP
QSFP-40G/8LC-AOC5M QSFP+ 40G/ps 5M OM3 QSFP+/8LC
QSFP-40G/8LC-AOC10M QSFP+ 40G/ps 10M OM3 QSFP+/8LC
QSFP-40G/8LC-AOC15M QSFP+ 40G/ps 15M OM3 QSFP+/8LC
QSFP-40G/8LC-AOC20M QSFP+ 40G/ps 20M OM3 QSFP+/8LC





LANMexx  also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Please feel free to contact  sales@szlanmexx.com





QSFP+ to 8 x LC Connector Breakout Optical Cable For Data Center

QSFP+ to 8 x LC Connector Breakout Optical Cable For Data Center

40G QSFP+ to 8 x LC Connector Breakout Optical Cable For Data Center

Cisco QSFP-8LC-AOC Compatible 40G QSFP+ Breakout Active Optical Cable

(QSFP+ to 8x LC, XXmeter, OM3)

Compatible 40G QSFP+ Breakout Active Optical Cable (QSFP+ to 8x LC, XX-meter, OM3)



LANMexx QSFP+ to 8 x LC Connector Breakout Optical Cable are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4.Sourcelight QSFP+ Breakout Cable is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s. QSFP+ Breakout Cable are suitable for short distances and offer a highly cost-effective way to connect within racks and across adjacent racks. These breakout cables connect to a 40G QSFP+ port of a switch on one end and to four 10G SFP+ Transceivers of a switch on the other end.



Features

Full duplex 4CH 850nm parallel active optical cable
Transmission data rate up to 10.3Gbit/s per channel
SFF-8436 QSFP+ compliant
Hot pluggable electrical interface
Differential AC-coupled high speed data interface
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
Low power consumption
Housing isolated from connector ground
Operating case temperature 0°C to +70°C
3.3V power supply voltage
RoHS 6 compliant

Parameter

Package (Form Factor) QSFP-8LC AOC
Data Rate (typical) 10.3 Gbps/CH
Distance 300m on OM3 MMF
Transmitter 4CH VCSEL Array Laser
Receiver 4CH PIN photo detector Array
TX Output Power (dBm) -7.5~+2.5
RX Sensitivity (dBm) -5.4
Low/High Case Temperature 0°C~70°C
Voltage Supply (typical) 3.3v
Connector QSFP+ SFP+
Application
Infiniband transmission at 4ch SDR, DDR and QDR
40GBASE-SR4 40G Ethernet
Data Centers

Compatiable brand

QSFP+ to 8 x LC Connector Breakout Optical Cable For  Data Center

Order  information

40G QSFP+AOC



Part No.

Form Factor

Data Rate

Distance

Wavelength

Connector

QSFP-40G-AOC3M

QSFP+

40G/ps

3M

N/A

QSFP+/QSFP+

QSFP-40G-AOC5M

QSFP+

40G/ps

5M

N/A

QSFP+/QSFP+

QSFP-40G-AOC7M

QSFP+

40G/ps

7M

N/A

QSFP+/QSFP+

QSFP-40G-AOC10M

QSFP+

40G/ps

10M

N/A

QSFP+/QSFP+

QSFP-40G-AOC15M

QSFP+

40G/ps

15M

N/A

QSFP+/QSFP+

QSFP-40G-AOC20M

QSFP+

40G/ps

20M

N/A

QSFP+/QSFP+

QSFP-40G-AOC50M

QSFP+

40G/ps

50M

N/A

QSFP+/QSFP+

QSFP-40G-AOC100M

QSFP+

40G/ps

100M

N/A

QSFP+/QSFP+













QSFP-40G/4SFP-AOC3M

QSFP+

40G/ps

3M

OM1

OM3

QSFP/4SFP

QSFP-40G/4SFP-AOC5M

QSFP+

40G/ps

5M

OM1

OM3

QSFP/4SFP

QSFP-40G/4SFP-AOC6M

QSFP+

40G/ps

6M

OM1

OM3

QSFP/4SFP

QSFP-40G/4SFP-AOC7M

QSFP+

40G/ps

7M

OM1

OM3

QSFP/4SFP

QSFP-40G/4SFP-AOC8M

QSFP+

40G/ps

8M

OM1

OM3

QSFP/4SFP

QSFP-40G/4SFP-AOC10M

QSFP+

40G/ps

10M

OM1

OM3

QSFP/4SFP

QSFP-40G/4SFP-AOC15M

QSFP+

40G/ps

15M

OM1/OM3

QSFP/4SFP













QSFP-40G/8LC-AOC5M

QSFP+

40G/ps

5M

OM3

QSFP+/8LC

QSFP-40G/8LC-AOC10M

QSFP+

40G/ps

10M

OM3

QSFP+/8LC

QSFP-40G/8LC-AOC15M

QSFP+

40G/ps

15M

OM3

QSFP+/8LC

QSFP-40G/8LC-AOC20M

QSFP+

40G/ps

20M

OM3

QSFP+/8LC





LANMexx  also provides a full set of OEM services, such as fiber connector, length, color, fiber grade, specification, material, package etc.

Please feel free to contact  sales@szlanmexx.com
